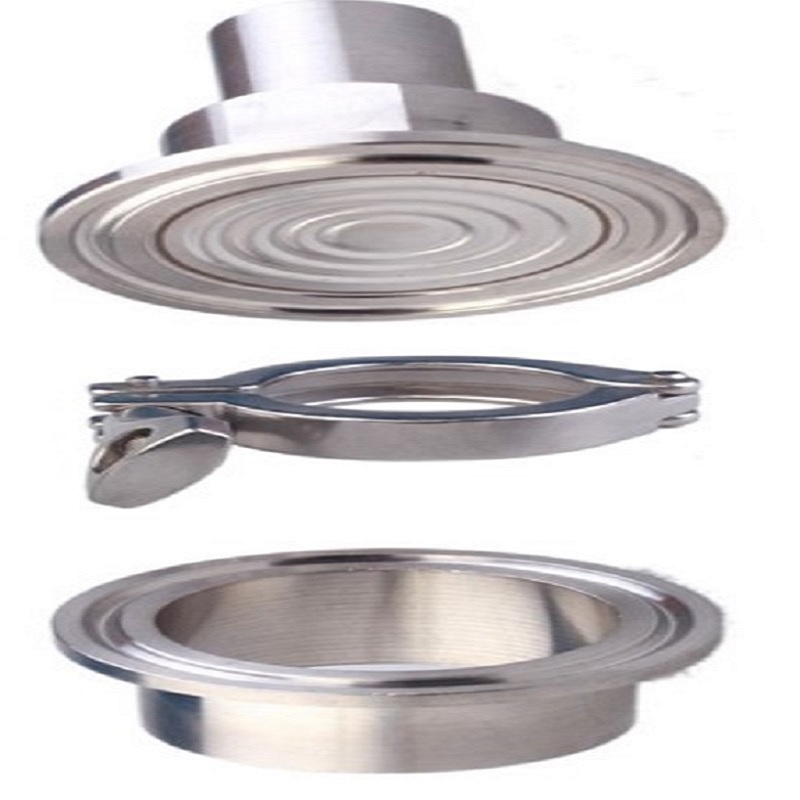

Description
SPECIAL FEATURES
- Quick Connect and Disconnect
- For Hygiene Applications
- Easy to Clean
SPECIFICATION
- Range: -1 to 0 kg/cm2 & 0 to 40 kg/cm2 (Standard)
- Process Temperature : -20?C to 140?C or as per fill fluid
- Instrument Connection : S16= 1/2″ BSP (F)
- S17= 1/4″BSP (F)
- Process Connection: 1 1/2″ Sanitary Seal (Without Clamp & Gasket) _x000B_
- Mounting : Direct ( Without Capillary)
- Diaphragm: AISI 316L SS
- Body: AISI 316 SS
- Fill Fluid: Food Grade Oil
APPLICATIONS
- Diaphragm seals are provided in the Instrument like Pressure Gauges , Switches, Transmitters in order to isolate the sensing element from the main service due to It?s Corrosive , Viscous and Sedimented nature and to avoid clogging and solidification.These seals are used in applications where purity in process is essential – Typically in Food, Dairy Beverages and Pharmaceutical Industries
