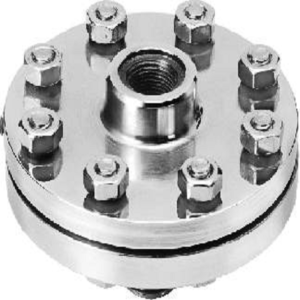

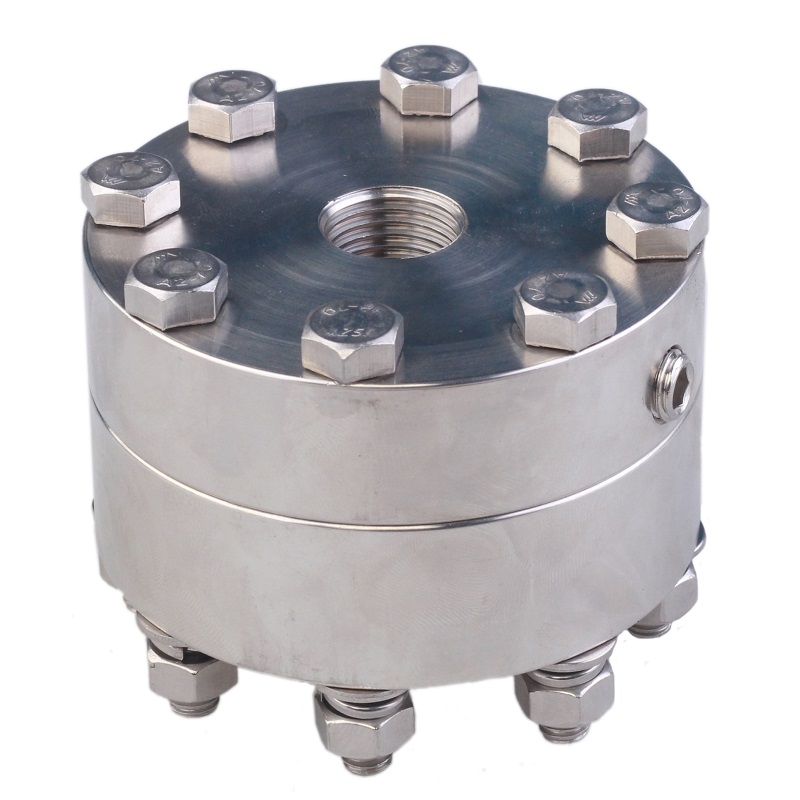

Heavy Duty Direct Coupled Type
Description
SPECIAL FEATURES
Robust Tow Piece Design
The Diaphragm is welded to the Body to ensure
separation of the filling fluid from the process medium
SPECIFICATION
Range: -1 kg/cm2 to 400 kg/cm2 ( Standard)
Process Temperature : -40?C to 200?C or as per fill fluid
Instrument Connection : 1/2″ NPT (F)
Process Connection: 1/2″ NPT (M)
Fill Liquid : Silicon Oil -DC 200
Diaphragm: AISI 316L SS
Top Chamber: AISI 304 SS
Bottom Chamber: AISI 316 SS
Nuts / Bolts : AISI 304 SS
Sealing Gasket : PTFE max 250?/ Inconel silver plated for 400?C max
APPLICATIONS
Diaphragm seals are designed to Isolate the sensing element of Pressure Gauges and Pressure Switches from process fluids that they may be Corrosive, Viscous, Sedimentous and / or with high Temperature
