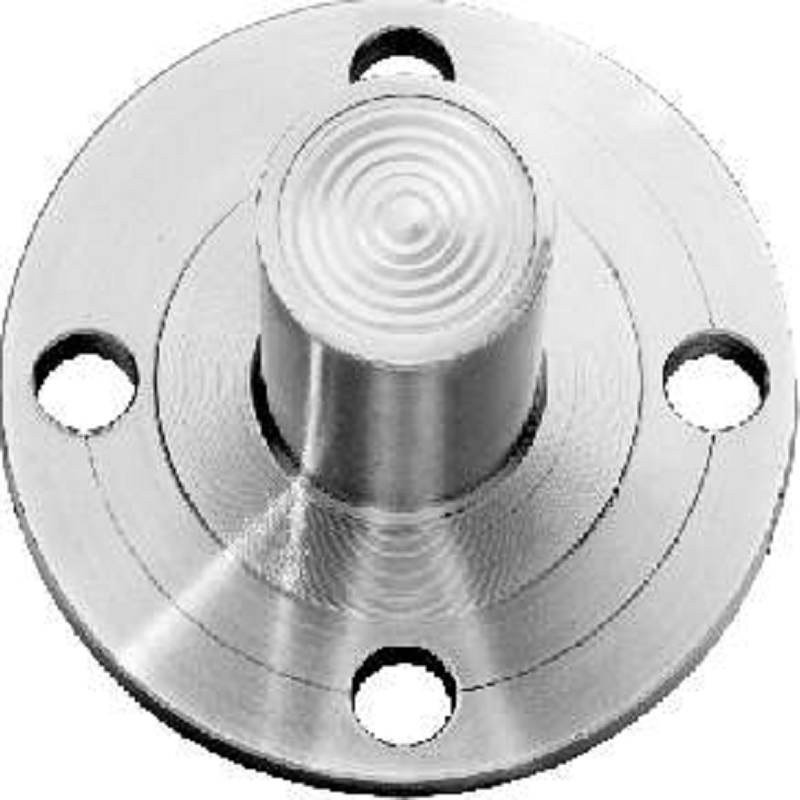

Diaphragm Seal Extended Neck Type
Description
SPECIAL FEATURES
All SS 316 Construction
Ideal for Slurry / High Viscous fluids.
Flange & Diaphragm are available in
various type of SS & Exotic Materials
SPECIFICATION
Range: 1 kg/cm2 to 250 kg/cm2*
Process Temperature : -40?C to 200?C or as per fill fluid
Instrument Connection : 1/2″ NPT(F)
Process Connection: Flange ( Refer Table)
Flange Finish: Finish 125-250 AARH
Diaphragm: AISI 316L SS
Body : AISI 316 SS
Flange: AISI 316 SS
Extension : 50mm (Other extension on request)
Fill Fluid: Silicon Oil -DC 200
APPLICATIONS
Diaphragm seals are provided in the Instrument like Pressure Gauges , Switches, Transmitters in order to isolate the sensing element from the main service due to It?s Corrosive , Viscous and Sedimented nature and to avoid clogging and solidification.
These kind of seals are widely used in the Viscous & Corrosive services where flushing is required periodically & frequently
