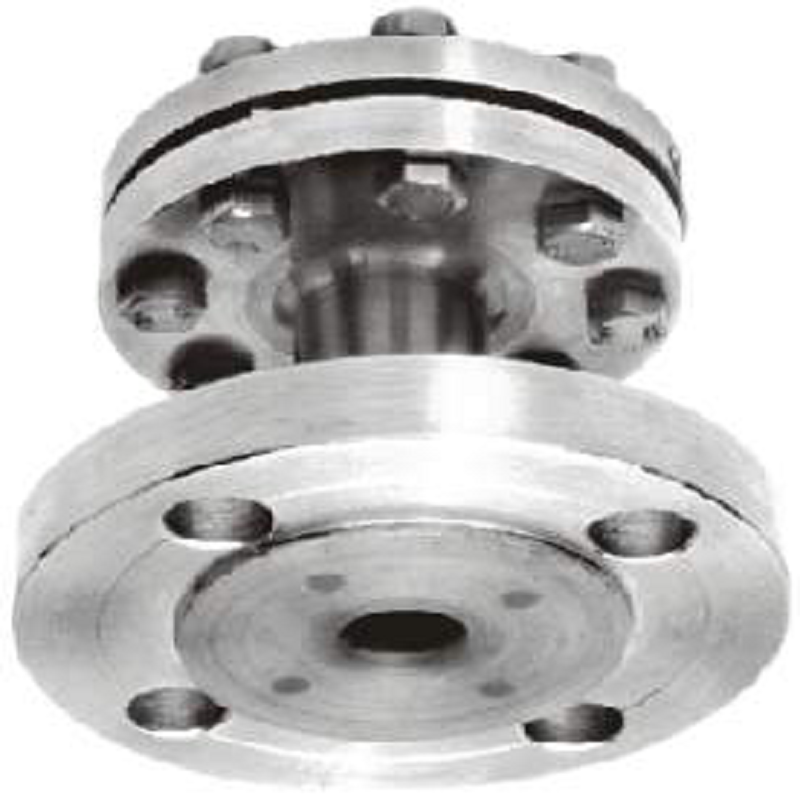

Diaphragm Seal Flange Type “I” Section

Description

SPECIAL FEATURES

Continuous Duty

?I? Section Extension to Facilitate smaller

flange sizes suitable for Anti Corrosive Protection

SPECIFICATION

Range: -1 kg/cm2 to 100 kg/cm2

Process Temperature : -40?C to 200?C without PTFE Lined

Instrument Connection : 1/2″ NPT(F)

Process Connection: Flange (as per DIN/BS/ANSI/JIS) 125-250 AARH

Fill Fluid : Silicon Oil- DC 200

Diaphragm: AISI 316L SS

Top Chamber: AISI 316 SS

Bottom Chamber ( ?I? Section) : AISI 316 SS Flange (As per DIN/BS/ANSI/JIS)

Nut , Bolts : AISI 304 SS

Sealing Gasket : PTFE

APPLICATIONS

Diaphragm seals are provided in the Instrument like Pressure Gauges , Switches, Transmitters in order to isolate the sensing element from the main service due to It?s Corrosive , Viscous and Sedimented nature and to avoid clogging and solidification.

This can be widely used with anti corrosive treatment/ protection & various flanged sizes
