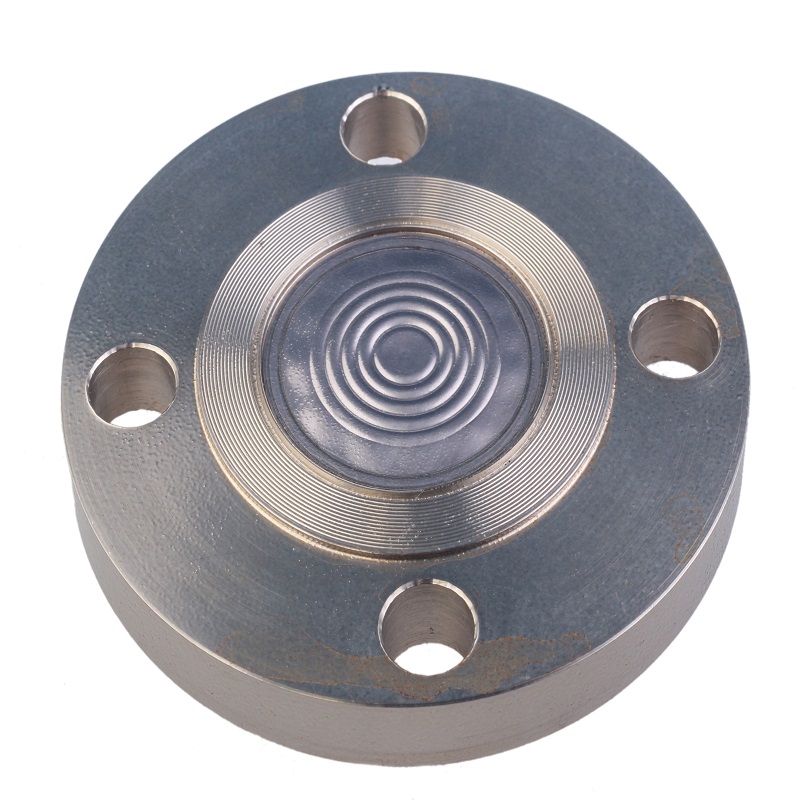

Direct Flanged Diaphragm Seal Flushed Type

Description

SPECIAL FEATURES

Flush Diaphragm

Easy Flushing (Through Flushing Ring)

Most Suitable for Slurry , Corrosive & High

Viscous Service Flushing Ring, Flange &

Diaphragm are available in various

Type of SS & Exotic Materials

SPECIFICATION

Range: -1 kg/cm2 to 0 & 0 to 250 kg/cm2*

Process Temperature : -40?C to 200?C or as per fill fluid

Instrument Connection : 1/2″ NPT(F)

Process Connection: Flange (as per DIN/BS/ANSI/JIS) 125-250 AARH

Diaphragm: AISI 316L SS

Flange: AISI 316 SS

Fill Fluid: Silicon Oil -DC 200

Sealing Gasket : PTFE

APPLICATIONS

Diaphragm seals are provided in the Instrument like Pressure Gauges , Switches, Transmitters in order to isolate the sensing element from the main service

due to It?s Corrosive , Viscous and Sedimented nature and to avoid clogging and solidification.

These kind of seals are widely used in the Viscous & Corrosive services where flushing is required

periodically & frequently
