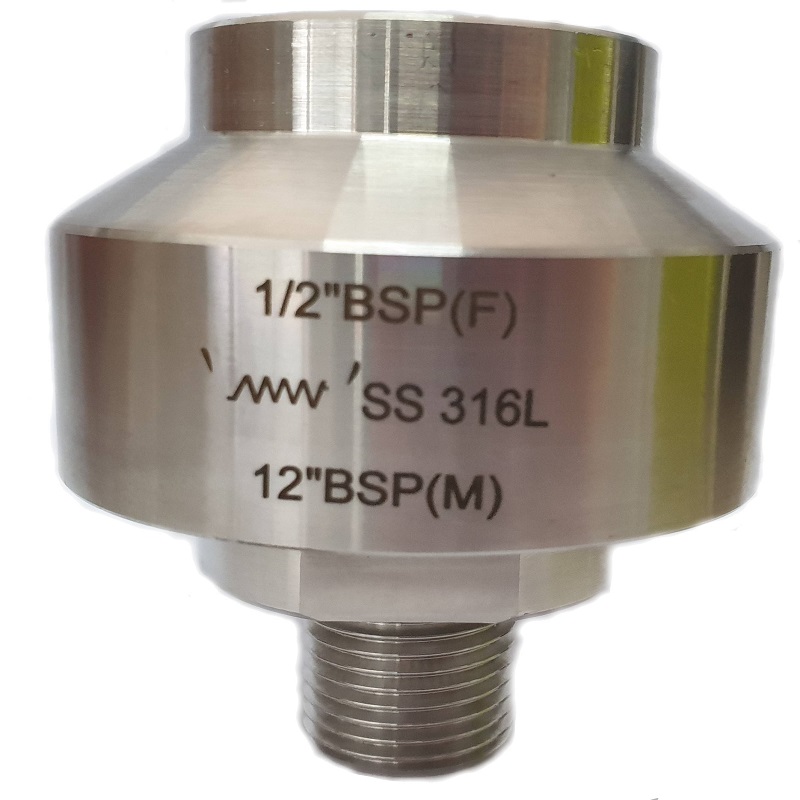

Description
SPECIAL FEATURES
- All SS 316 Construction
- Light Weight
- Economical
- Ideal choice for High Pressure
- The Diaphragm is welded to the body
- to ensure separation of the filling
- fluid from the process medium
SPECIFICATION
- Range: -1 kg/cm2 to 400 kg/cm2
- Process Temperature : -40?C to 200?C or as per fill fluid
- Instrument Connection : 1/2″ BSP (F)
- Process Connection: 1/2″BSP(M)
- Fill Fluid : Silicon Oil- DC 200
- Mounting : Direct ( Without Capillary)
- Diaphragm: AISI 316L SS
- Body: AISI 316 SS
APPLICATIONS
- Diaphragm seals are designed to Isolate the sensing element of Pressure Gauges and Pressure Switches from process fluids that they may be Corrosive,Viscous, Sedimentous and /or with high temperature
