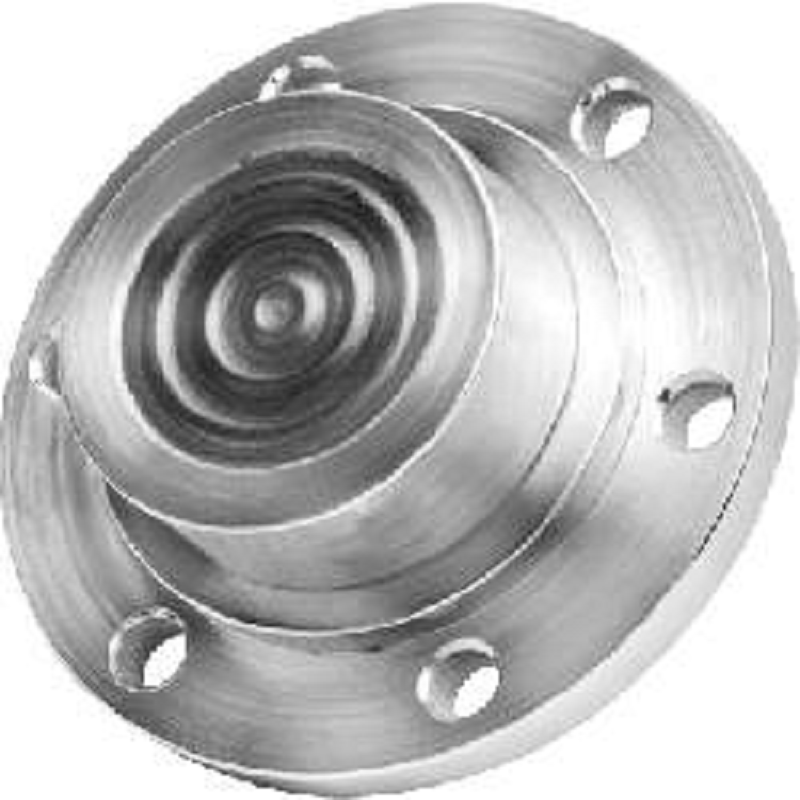

Description
SPECIAL FEATURES
- All Stainless Steel Construction
- Continuous Duty
- Easy to Clean
- Available with Anti Vibration Spring
SPECIFICATION
- Range: 1 kg/cm2 to 40 kg/cm2*
- Process Temperature : -40?C to 200?C or as per fill fluid
- Instrument Connection : 1/2″ NPT(F)
- Process Connection: As per diagram below
- Mounting: Direct (Without Spring & Capillary)
- Diaphragm: AISI 316L SS
- Body & Floating Ring : AISI 316 SS
- Fill Fluid: Silicon Oil -DC 200
APPLICATIONS
- Diaphragm seals are provided in the Instrument like Pressure Gauges , Switches, Transmitters in order to isolate the sensing element from the main service due to It?s Corrosive , Viscous and Sedimented nature and to avoid clogging and solidification.
- These kind of seals are widely used in the Viscous & Corrosive services where flushing is required periodically & frequently
