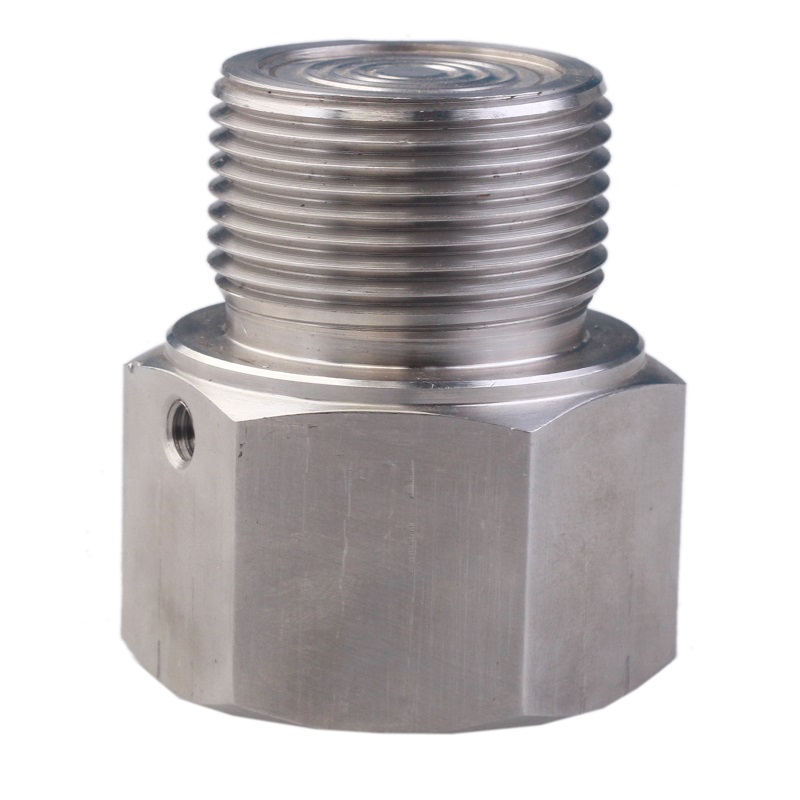

Diaphragm Seal Screw Flushed Type
Description
SPECIAL FEATURES
All SS 316 Construction
One Piece Construction
Flush Diaphragm
SPECIFICATION
Range: Refer below table
Process Temperature : -40?C to 200?C or as per fill fluid
Instrument Connection : 1/4″ BSP (F)
Process Connection: 3/4″BSP(M) _x000B_Mounting : Direct ( Without Capillary)
Diaphragm: AISI 316L SS
Body: AISI 316 SS
Fill Fluid : Silicon Oil DC 200
APPLICATIONS
Diaphragm seals are provided in the Instruments like Pressure Guages , Switches, Transmitters in order to Isolate the sensing element from the main service due to it?s corrosive , Viscous and Sedimented nature and avoid clogging and solidification.
