Description
SPECIAL FEATURES

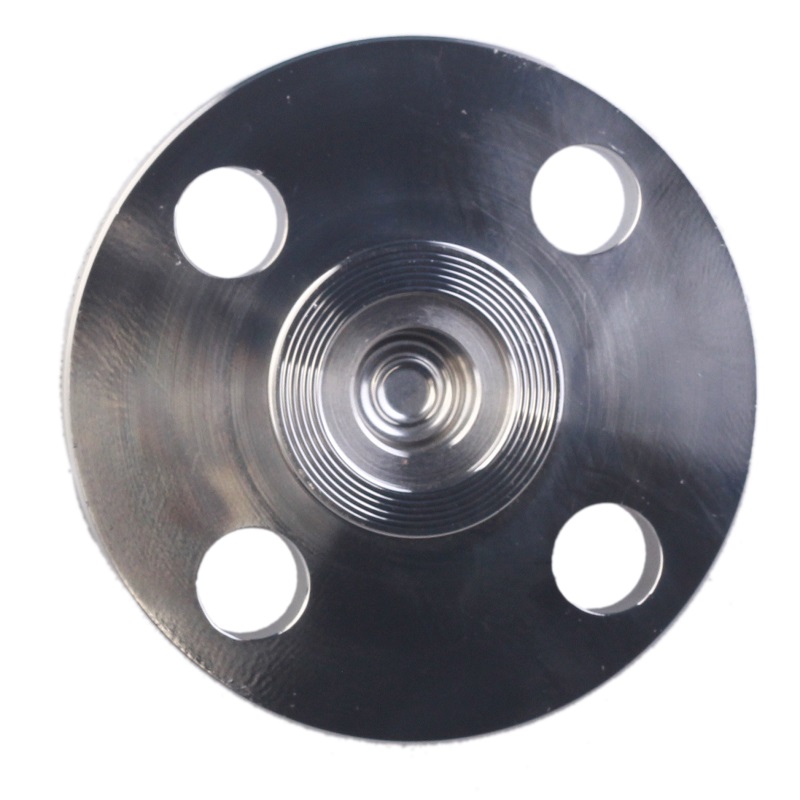

- Welded Diaphragm_x000B_Most suitable for Slurry & Corrosive Service
- Flushing Ring , Flange & Diaphragm are
- available in various type of SS & Exotic Materials
SPECIFICATION
- Seal Type: S26= -1 to 0 kg/cm2 & 0 to 250 kg/cm2 ( Non PTFE Lined)(Standard)
- S27= -1 to 0 kg/cm2 & 0 to 40 kg/cm2 ( PTFE Lined)*
- Process Temperature : Max. 150?C for PTFE Lined
- -40?C to 200?C or without PTFE Lined
- Instrument Connection : 1/2″ NPT(F)
- Process Connection: Flange (as per DIN/BS/ANSI/JIS) 125-250 AARH
- Fill Fluid : Silicon Oil- DC 200
- Diaphragm: AISI 316L SS
- Top Chamber: AISI 316 SS
- Flange: AISI 316 SS
APPLICATIONS
- Diaphragm seals are provided in the Instrument like Pressure Gauges , Switches, Transmitters in order to isolate the sensing element from the main service due to It?s Corrosive , Viscous and Sedimented nature and to avoid clogging and solidification.
- These kind of seals are widely used in the Viscous & Corrosive services where flushing is required periodically & frequently
