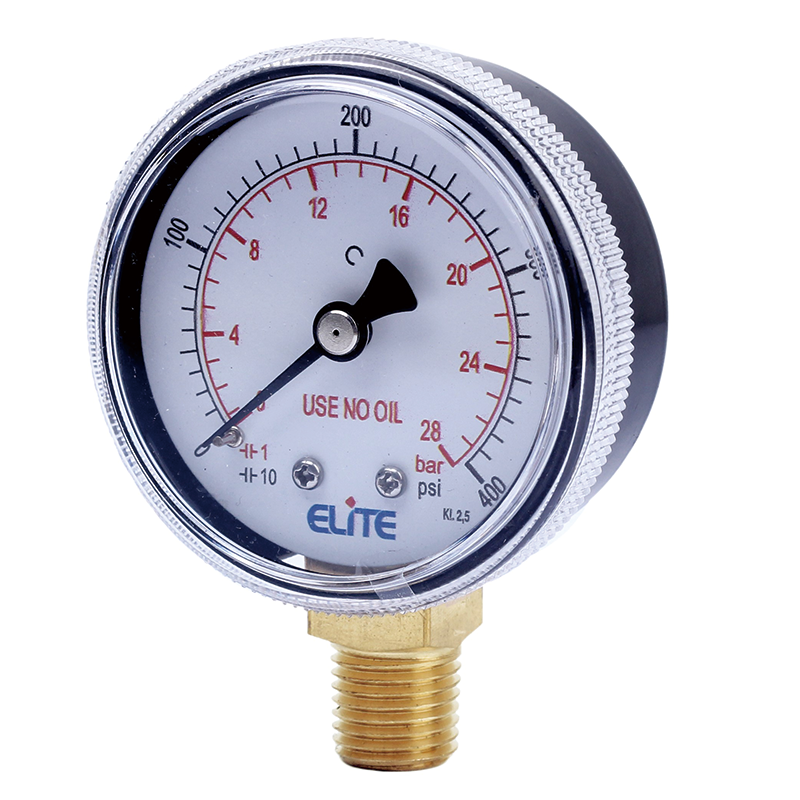

Oxygen Service Pressure Gauges
Description
SPECIAL FEATURES
Economic Type
Oxygen Clean Service Version
Standard Followed ASME ?B.40.1 / EN837-1
IP:53
SPECIFICATION
Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
Process Temperature : Max. 250?F (120?C)
Operating Pressure Range : 75% of Scale Value
Over Pressure Limit : 120% of Max. Scale Value
Case : Steel Powder Coated
Joints : Alloy Brazing / Soldering
Socket : Copper Alloy
Bourdon : Copper Alloy
Movement : Copper Alloy
Dial :Aluminum
Pointer : Fixed
Window : Twist-on plastic lens
Range : Vacuum to 6000 psi
ACCURACY AS PER ASME B.40.1
2? : 3-2-3 (Grade B)
2.5? : 2-1-2 (Grade A)
