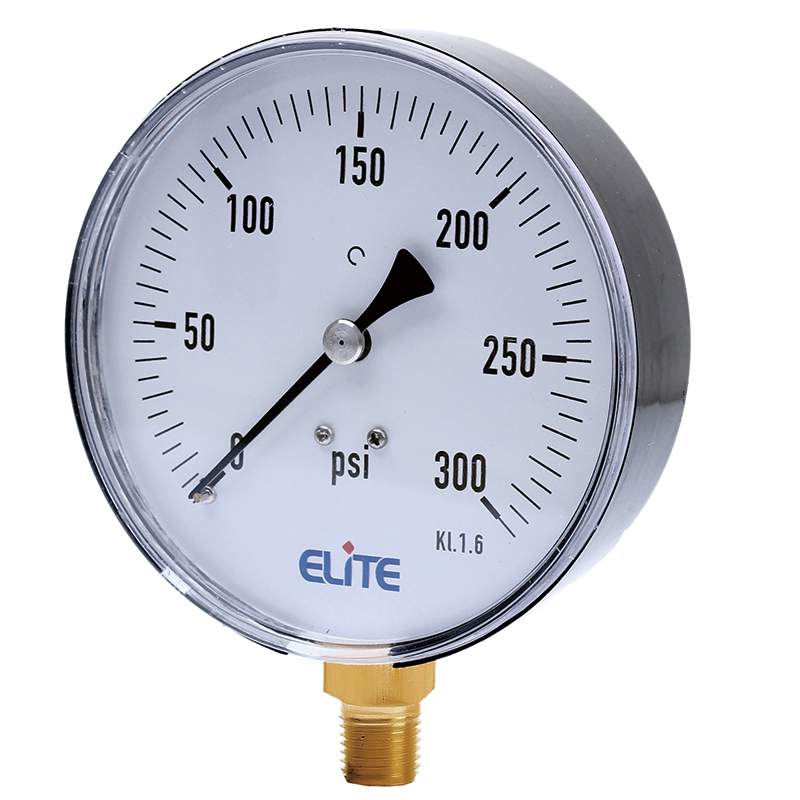

Description
SPECIAL FEATURES
- Economical Version
- General Purpose Applications
- Standard Followed: ASME-B.40.1/EN837-1
SPECIFICATION
- Ambient Temperature: -4?(-20?)to+150?(+65?)
- Process Temperature: Max.250?(120?)
- Operating Pressure Range: 75% of scale Value
- Over Pressure Limit: 120% of Max.scale Value
- Case: ABS Plastic Case
- Joints: Alloy Brazing/Soldering
- Socket: Copper Alloy
- Bourdon: Copper Alloy
- Movement: Copper Alloy
- Dial: Aluminum
- Pointer: Fixed
- Window: Snap-in Plastic Lens
- Ranges: Vacuum to 1500psi
- ACCURACY AS PER ASME B.40.1
- 1.5″/2″ : 3-2-3 (Grade B)
- 2.5″/3″/4″ : 2-1-2 (Grade A)
