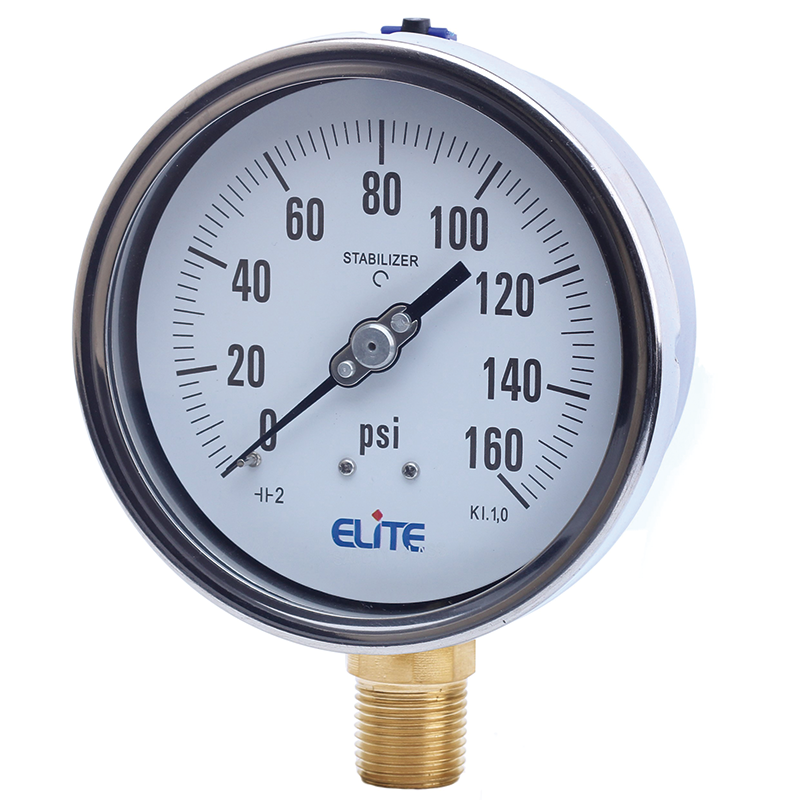

Description
SPECIAL FEATURES
- Standard Followed ASME-B 40.1 / EN837-1
- Cost Effective
- Build in Stabilizer Movement
- Dry or Liquid Version
- 40mmTemperature Compensated Blow Out Disc
- IP 65
SPECIFICATION
- Ambient Temperature : -4 ?F (-20?C) to +150?F (+65?C)
- Process Temperature : Max. 248?F (120?C)
- Operating Pressure Range : 75% of Scale Value
- Over Pressure Limit : 125% of Max. Scale Value
- Case : AISI 304 SS
- Joints : Alloy Brazing / Soldering
- Socket : Copper Alloy
- Bourdon : Copper Alloy
- Movement : Copper Alloy
- Dial :Aluminum
- Pointer : Micro Zero Adjustable
- Window : Safety Glass
- Range : Vacuum to 6,000PSI
- ACCURACY AS PER ASME B.40.1
- 4?/4.5?/6?: 1-1-1 (GRADE 1A )
