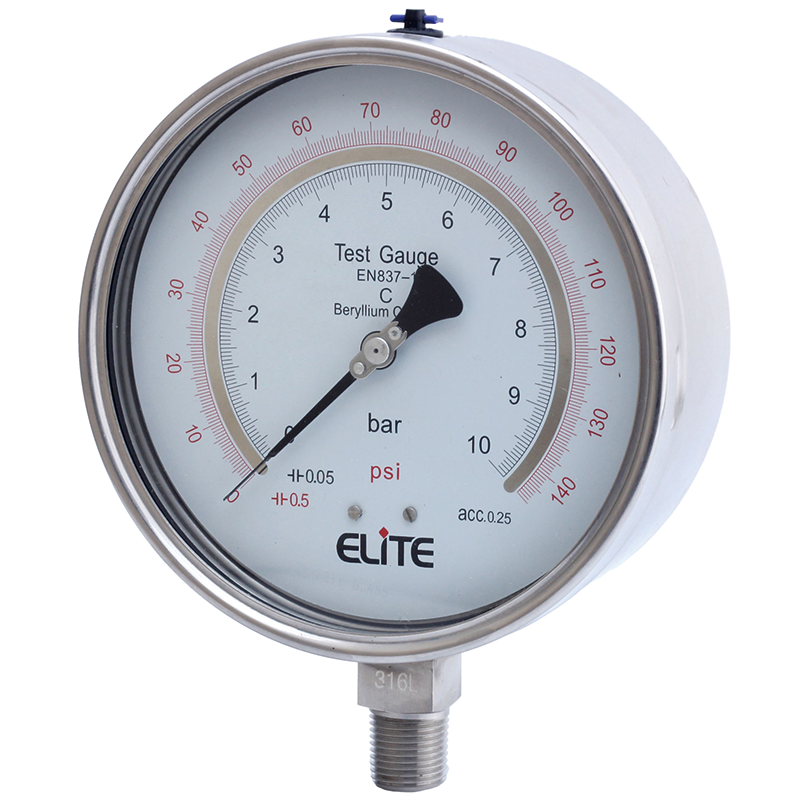

Description
SPECIAL FEATURES
- Standard Followed ASME-B 40.1 / EN837-1
- Anti Parallax Mirror Band
- External Zero Adjustable
- Internal Vacuum/ Overpressure Stops
- Calibration Certificate With Traceability To National /
- International Standard
- IP 66
SPECIFICATION
- Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
- Process Temperature : Max. 150?F (+65?C)
- Operating Pressure Range : 75% of Scale Value
- Over Pressure Limit : 125% of Max. Scale Value
- Case : AISI 304 SS
- Joints : Tig Argon Arc Welding
- Socket : AISI 316L SS
- Bourdon : AISI 316L SS
- Movement : AISI 304 SS
- Dial : Anti Parallax Mirror Dial
- Pointer : Knife-Edge Micro Zero Adjustable
- Window : Safety Glass
- Range : Vacuum to 10,000PSI
- ACCURACY AS PER ASME B.40.1
- 6?/8?/10?: 0.25% (GRADE 3A)
