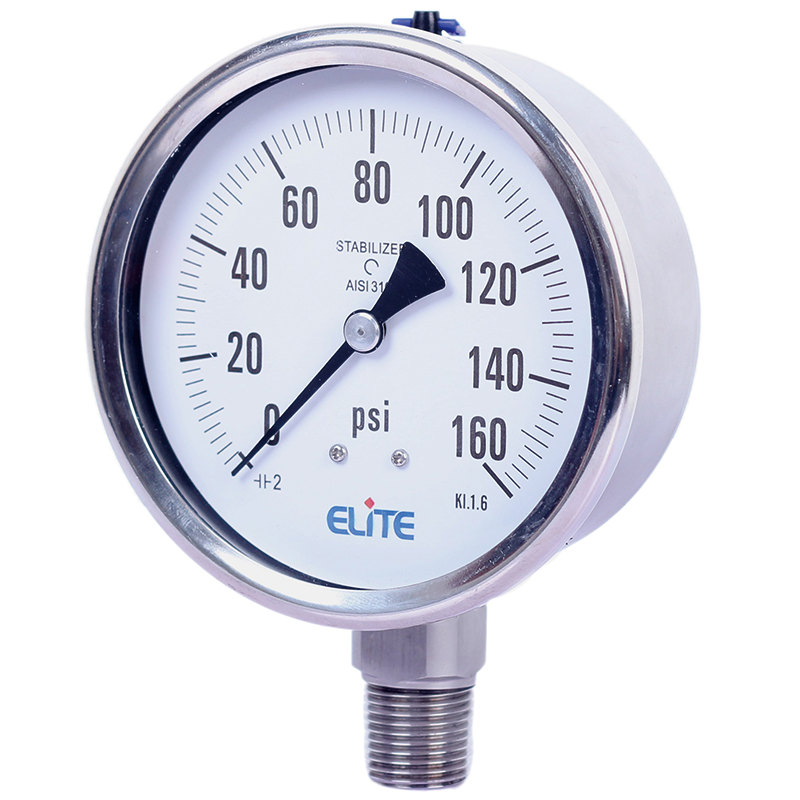

Economy Industrial Guages
Description
SPECIAL FEATURES
Stainless Steel Case Welded to socket
Dry or liquid filled version
Standard followed ASME-B.40.1/EN837-1
Helium Leak Tested
Built in Stabilizer Movement
Ready For Oxygen Use
Internal Vacuum /Over Pressure Stops
IP 66
SPECIFICATION
Ambient Temperature: -4?(-20?)to+150?(+65?)
Process Temperature: Max.392?(200?)
Operating Pressure Range: 75% of scale value
Over Pressure Limit: 125% of Max.scale Value
Case & Bezel: SS304 Crimped
Joints: Tig Argon Arc Welding
Protection: IP316L 66
Gasket: NBR
Socket: AISI
Bourdon: AISI 316L
Movement: AISI 304
Dial: Aluminum
Pointer: Fixed
Window: PC Lens
Gasket: NBR
Ranges: Vacuum to 10,000psi
ACCURACY AS PER ASME B.40.1
1.5″/2″ : 3-2-3 (Grade B)
2.5″/3″/4″ : 2-1-2 (Grade A)
