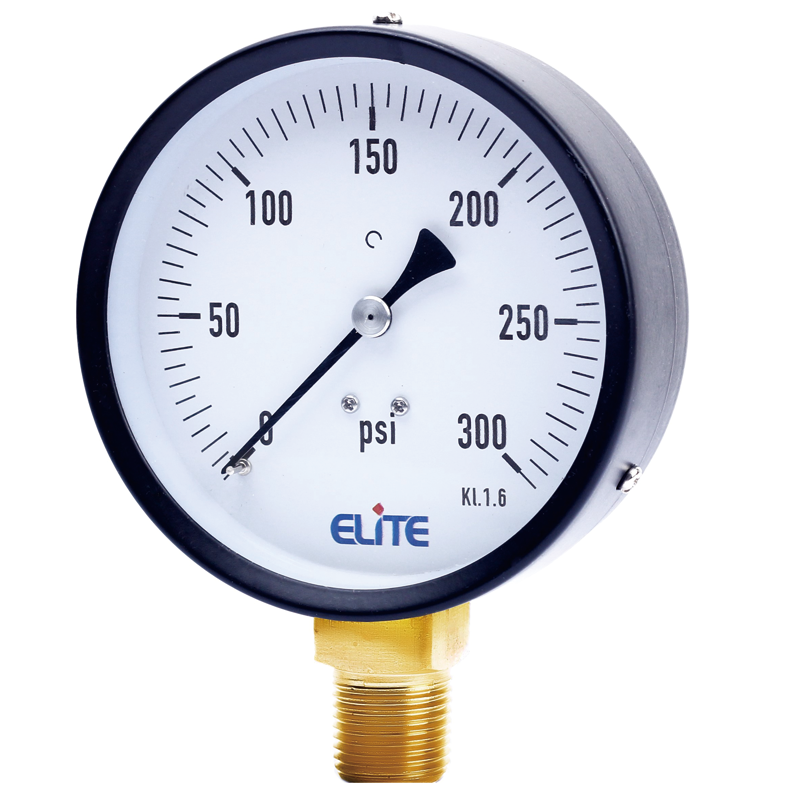

Description
SPECIAL FEATURES
Economical Version
General Purpose Applications
Standard Followed:ASME-B.40.1/EN837-1
SPECIFICATION
Ambient Temperature: -4?(-20?) to+150?(+65?)
Process Temperature: Max. 250?(120?)
Operating Pressure Range: 75% of Scale Value
Over Pressure Limit: 120% of Max.Scale Value
Case: Steel,Powder Coated
Joints: Alloy Brazing/Soldering
Socket: Copper Alloy
Bourdon: Copper Alloy
Movement: Copper Alloy
Dial: Aluminum
Pointer: Fixed
Window: Sheet Glass
Ranges: Vacuum to 6000psi
ACCURACY AS PER ASME B.40.1
1.5″/2″ : 3-2-3 (Grade B)
2.5″/3″/4″ : 2-1-2 (Grade A)
