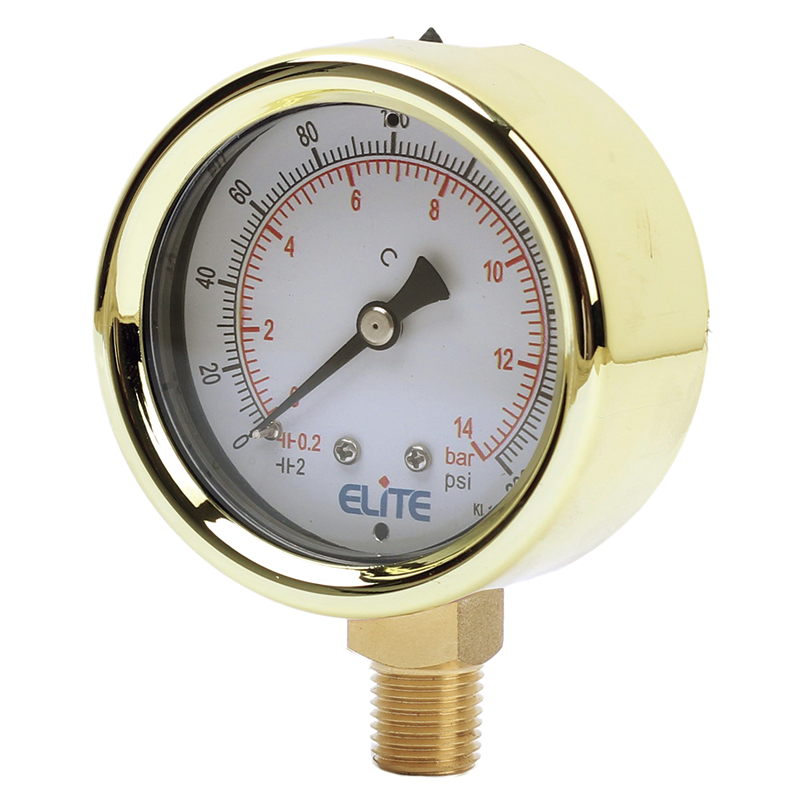

Description
SPECIAL FEATURES
- Standard Followed ASME-B 40.1 / EN837-1
- Forged Brass Case
- Rugged Construction
- Dry or Liquid Version
- IP 65
SPECIFICATION
- Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
- Process Temperature : Max. 248?F (120?C)
- Operating Pressure Range : 75% of Scale Value
- Over Pressure Limit : 125% of Max. Scale Value
- Case : Forged brass
- Joints : Alloy brazing/Soldering
- Socket : Copper Alloy
- Bourdon : Copper Alloy
- Movement : Copper Alloy
- Dial : Aluminum
- Pointer : Fixed
- Window : PC Lens
- Range : Vacuum to 6000PSI
- ACCURACY AS PER ASME B.40.1
- 2.5? : 2-1-2(GRADE A )
