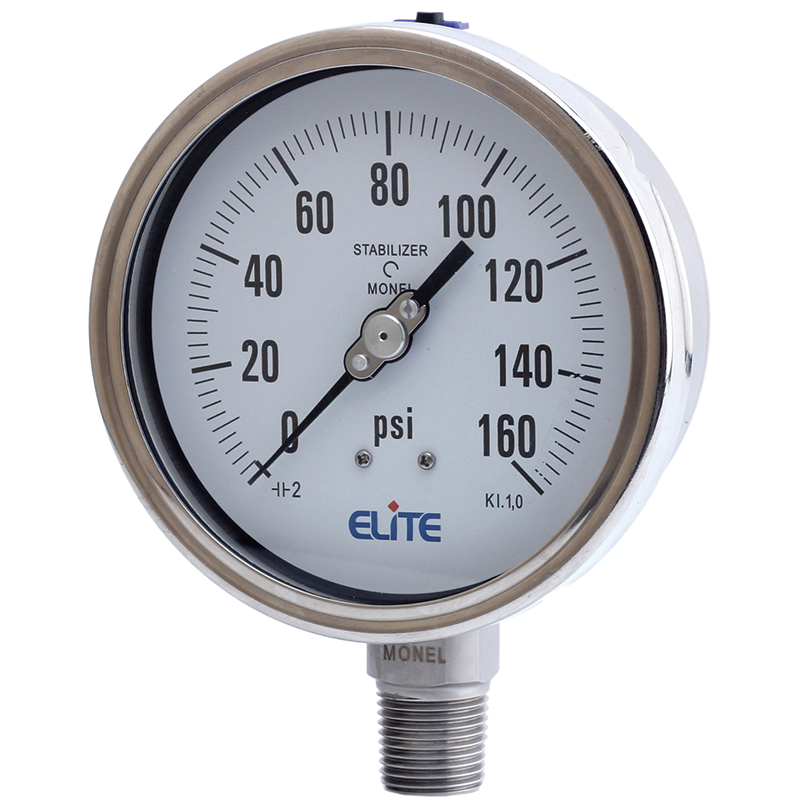

Description
SPECIAL FEATURES
Standard Followed ASME-B 40.1 / EN837-1
Wetted Parts MONEL
Build in Stabilizer Movement
Dry or Liquid Version
NACE MR 0175 Compliance
Helium Leak Tested
40mmTemperature Compensated Blow Out Disc
Internal Vacuum/ Over Pressure Stops
IP 66
SPECIFICATION
Ambient Temperature : -4 ?F (-20?C) to +150?F (+65?C)
Process Temperature : Max. 392?F (200?C)
Operating Pressure Range : 75% of Scale Value
Over Pressure Limit : 125% of Max. Scale Value
Case : AISI 304 SS
Joints : Tig Argon Arc Welding
Socket : MONEL
Bourdon: MONEL
Movement : AISI 304 SS
Dial :Aluminum
Pointer : Micro Zero Ad justable
Window : Safety Glass
Range : Vacuum to 10,000PSI
ACCURACY AS PER ASME B.40.1
2.5? /3″ : 2-1-2 (GRADE A)
4?/4.5″/6? : 1-1-1 (GRADE 1A)
