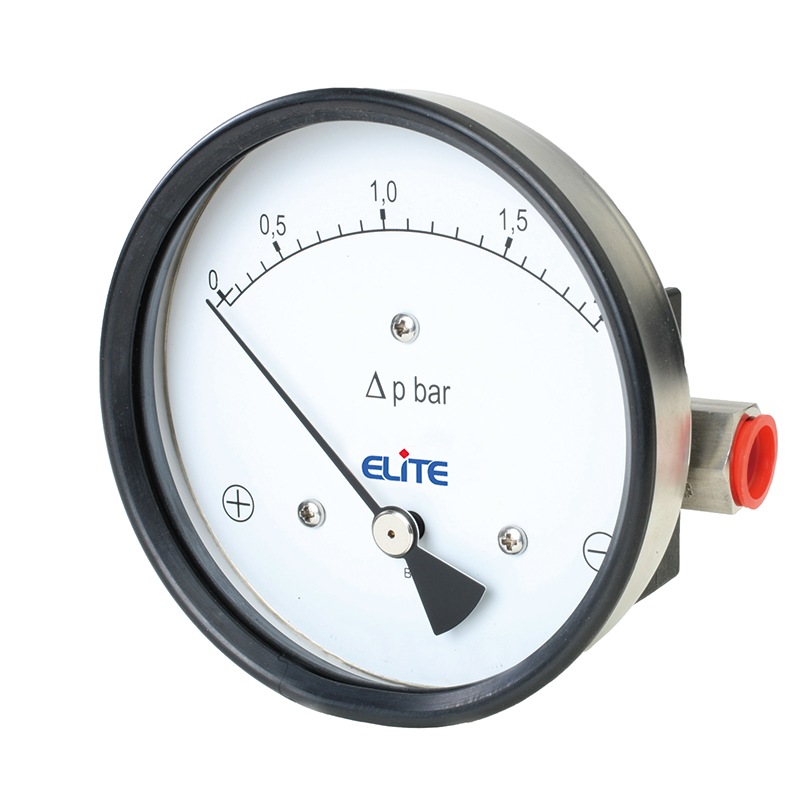

Description
SPECIFICATION
- Accuracy : + 3% Of The FSD (Ascending)
- Migration : Minor From High To Low Port
- Range : 0-0.25 to 0-10bar/psi or psi/kPa Dual Scale
- First Marking On The Scale : 15% Of The FSD
- Sensing Element : Magnetic Piston With Compression Spring
- Wetted Parts : SS316,SS 302 Compression Spring,Seals & Ceramic Magnet
- Case Material & Dial Size : Stainless Steel (SS 304):2.5″,3.5″,4.0″
- Engineering Polymer:2.5″
- Bayonet:4.0″
- Mounting : Direct,Front Flange,2″Pipe & Surface Mounting
- Maximum Working Pressure : 100,250 & 400 bar
- Maximum Process Temperature : 0 to 80?(32 to 175 ?)
- Enclosure : Engineering Polymer
- Seals: Buna-N & Viton
- Window : Float Glass(std.),Toughened Glass,Acrylic & Safety Glass
- Connection : 1/4″BSP(F) Std.Optional 1/4″NPT(F)
- Porting : In-line
- Over Range Protection : Up To The Max.Working Pressure From High & Low Side
- Protrction For Gauge & Switch : IP 65
