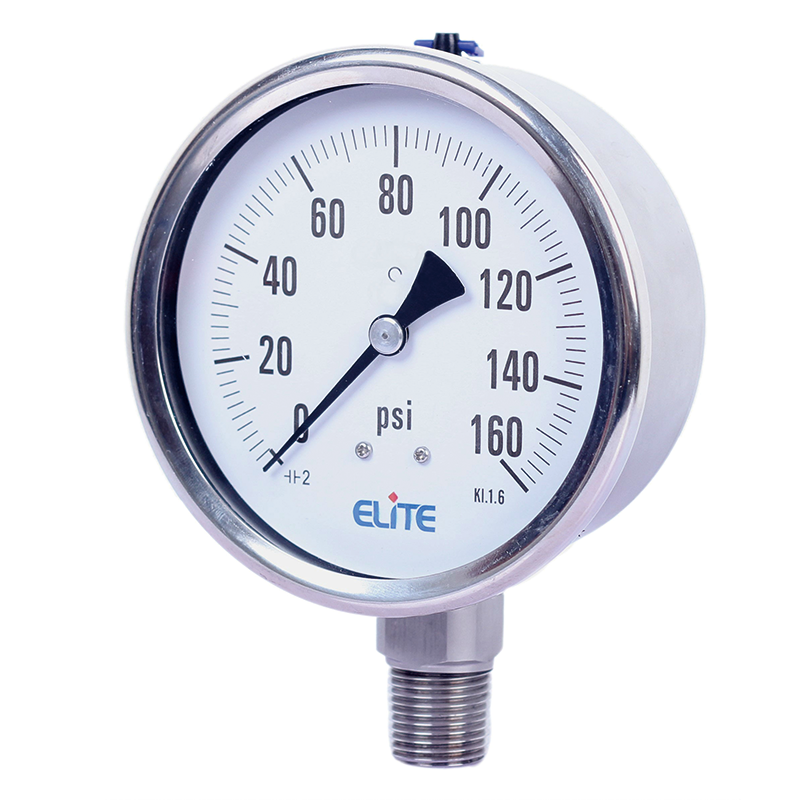

Economy All SS Pressure Guages

Economy All SS Pressure Guages

SKU: P-37 Category:

Description

SPECIAL FEATURES
  • Stainless Steel Case & Measuring System
  • 316 L SS/304 SS Wetted Parts Welded With Case
  • Helium Leak Tested Ready For Oxygen Use
  • Standard Followed ASME ?B.40.1
  • IP:66
    • SPECIFICATION
  • Ambient Temperature : -4 ?F (-20?C) to + 1 50?F (+65?C)
  • Process Temperature : Max. 392?F (200?C)
  • Operating Pressure Range : 75% of Scale Value
  • Over Pressure Limit : 125% of Max. Scale Value
  • Case : AISI 304 SS
  • Joints : Tig Argon Arc Welding
  • Socket : AISI 304 SS
  • Bourdon: AISI 316L SS
  • Movement : Brass
  • Dial : Aluminum
  • Pointer : Fixed
  • Window : PC Lens
  • Range : Vacuum to 10,000psi
  • ACCURACY AS PER ASME B.40.1
  • 1.5″/2″ : 3-2-3 (Grade B)
  • 2.5″/3″/4″ : 2-1-2 (Grade A)

    • Datasheet
