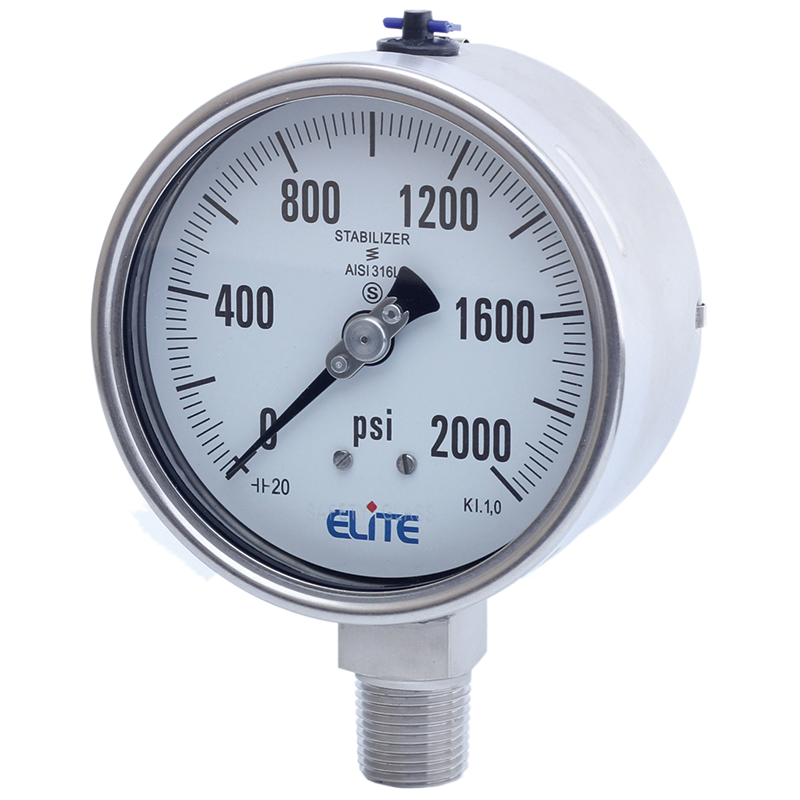

All SS Solid Front Pressure Gauge
Description
SPECIAL FEATURES
Standard Followed ASME-B 40.1 / EN837-1
Stainless Steel Case With Solid Front Design
Wetted Parts AISI 316L Stainless Steel
Build in Stabilizer Movement
Dry or Liquid Version
Silicone fillable version availability
NACE MR 0175 Compliance
Helium Leak Tested
Laser Welded Case Design
Ready For Oxygen Service
Internal Vacuum/ Over pressure Stops
IP 66
SPECIFICATION
Ambient Temperature: -4 ?F (-20?C) to +150?F (+65?C)
Process Temperature: Max. 392?F (200?C)
Operating Pressure Range: 75% of Scale Value
Over Pressure Limit: 125% of Max. Scale Value
Case: AISI 304 SS
Joints: Tig Argon Arc Welding
Socket: AISI 316L SS
Bourdon: AISI 316L SS
Movement: AISI 304 SS
Dial: Aluminum
Pointer: Micro Zero Adjustable
Window: Safety Glass
Range: Vacuum to 10,000PSI
ACCURACY AS PER ASME B.40.1
2.5″ : 2-1-2 (GRADE A )
4?/4.5″/6″ : 1-1-1 (GRADE 1A )
