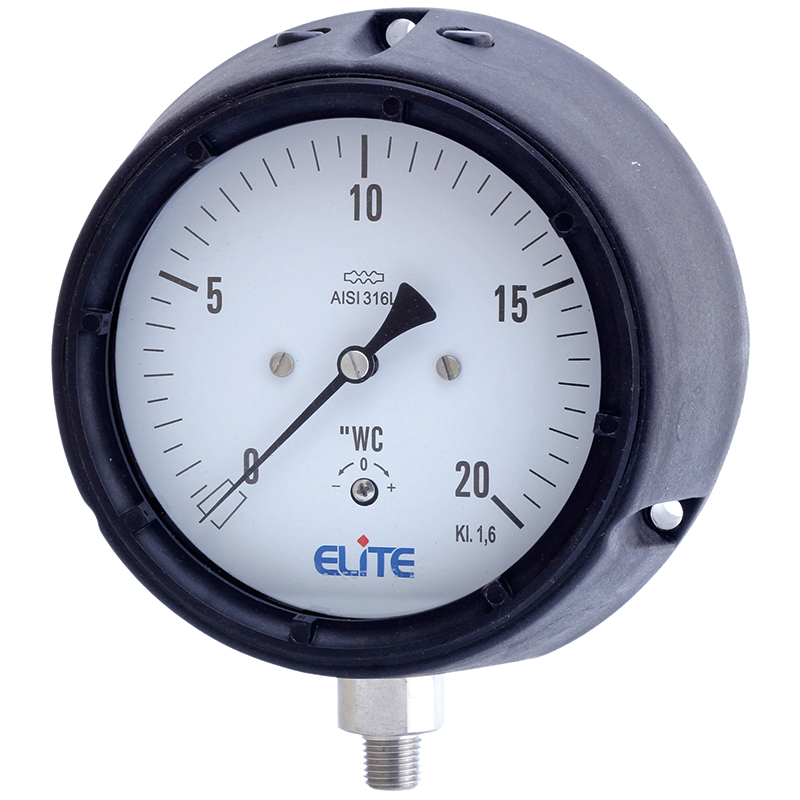

Phenolic Case Capsule Gauges
Description
SPECIAL FEATURES
Standard Followed ASME-B 40.1
Phenolic Case With Solid Front Design
Blow Out Back
Wetted Parts AISI 316L Stainless Steel
External Zero Adjustable
Ready For Oxygen Service
IP 65
SPECIFICATION
Ambient Temperature : -4 ?F (-20?C) to +150?F (+65?C)_x000B_Process Temperature : Max. 248?F (120?C)
Operating Pressure Range : 75% of Scale Value
Over Pressure Limit : 110% of Max. Scale Value
Case : Phenolic
Joints : Tig Argon Arc Welding
Socket : AISI 316L SS
Capsule : AISI 316L SS
Movement : AISI 304 SS
Dial : Aluminum
Pointer : Fixed_x000B_ Window : Safety Glass_x000B_Range : -250-0″wc to 0-250″wc
ACCURACY AS PER ASME B.40.1
4.5? : 2-1-2 (GRADE A )
