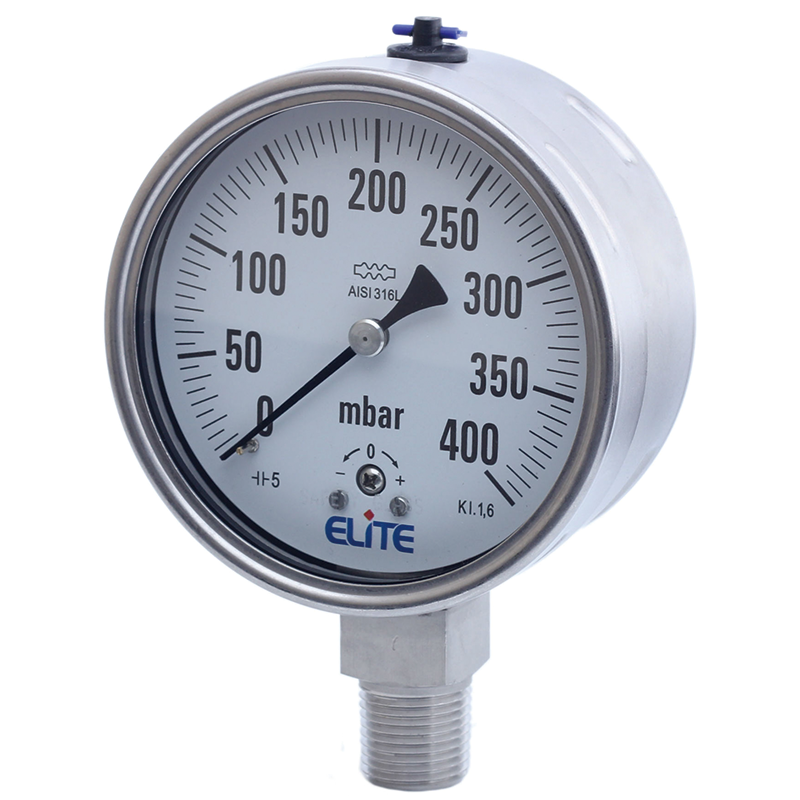

All SS Pressure Guage Capsule Type (Low Pressure)

All SS Pressure Guage Capsule Type (Low Pressure)

SKU: P-06 Category:

Description

SPECIAL FEATURES
  • Standard Followed ASME-B 40.1 / EN837-3
  • Wetted Parts AISI 316L Stainless Steel
  • Helium Leak Tested
  • External Zero Adjustable
  • Ready For Oxygen Service
  • IP 65
    • SPECIFICATION
  • Ambient Temperature: -4?(-20?) to+150?(+65?)
  • Process Temperature: Max. 212?(100?)
  • Operating Pressure Range: 75% of Scale Value
  • Over Pressure Limit: 110% of Max.Scale Value
  • Case: AISI 304 SS
  • Joints: Tig Argon Arc Welding
  • Socket: AISI 316L SS
  • Capsule: AISI 316L SS
  • Movement: AISI 304 SS
  • Dial: Aluminum
  • Pointer: Fixed
  • Window: Safety Glass
  • Ranges: -250-0″wc to 0-250″wc
  • ACCURACY AS PER ASME B.40.1
  • 2.5?/3″/4?/4.5″/6″ : 2-1-2 (Grade A)

    • Datasheet
