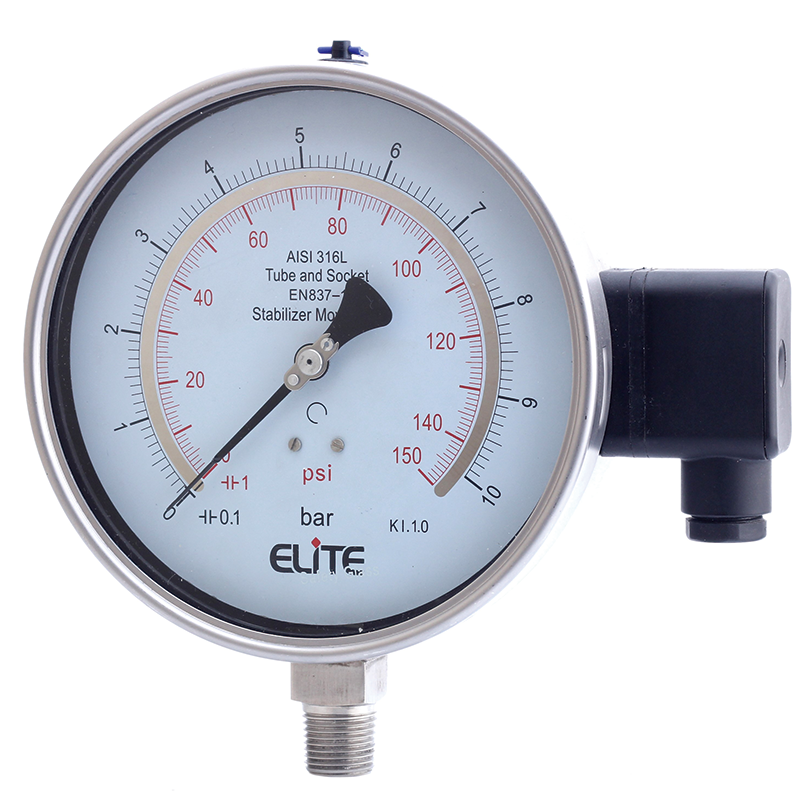

Transmitter Pressure Gauges

Description

CE Approved Transmitter

Local Display With 4 To 20mA Output

Stainless Steel Case & Measuring System

Helium leak tested

Standard Followed ASME ?B.40.1 / EN837-1

IP:54

Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)

Process Temperature : Max. 392?F (200?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 125% of Max. Scale Value

Case : AISI 304 SS

Joints : Tig Argon Arc Welding

Socket : AISI 316L SS

Bourdon: AISI 316L SS

Dial :Aluminum

Pointer : Mirco Zero Adjustable

Window : Safety Glass

Range : Vacuum to 7500psi

Signa l Output: 4-20mA DC(2-lime)

1-5V.DC(3-lime)

Working Voltage: 24V.DC

Element: Ceramic Sensor

Junction Box: PVC

ACCURACY AS PER ASME B.40.1

4?/6? : 1-1-1 (GRADE 1A)
