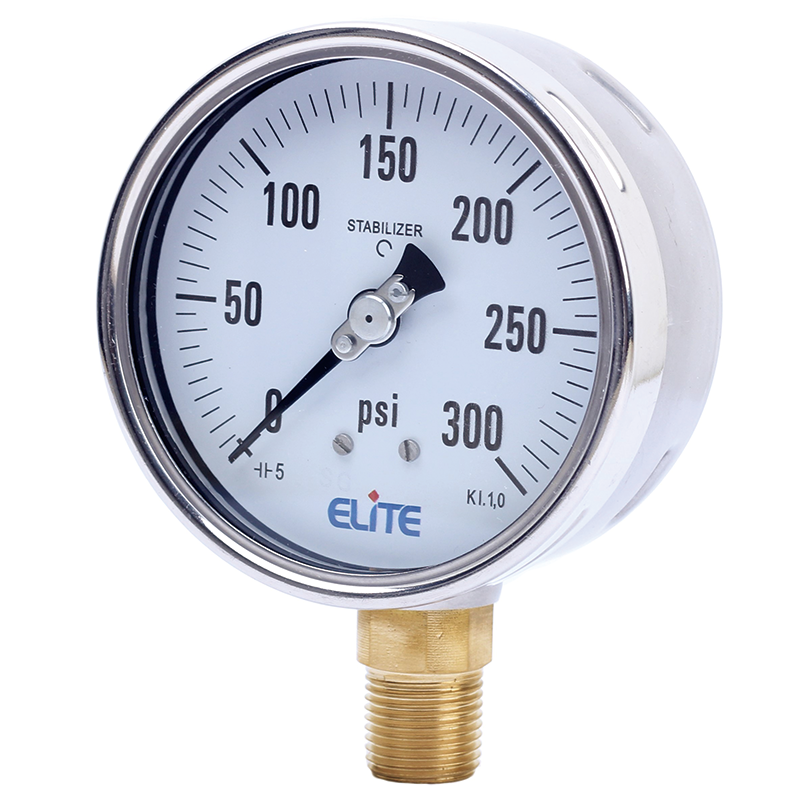

SS Case Brass Pressure Gauges-DIN Case

SS Case Brass Pressure Gauges-DIN Case

SKU: P-35 Category:

Description

SPECIAL FEATURES
  • Standard Followed ASME-B 40.1 / EN837-1
  • Cost Effective
  • Build in Stabilizer Movement
  • Dry or Liquid Version
  • 40mmTemperature Compensated Blow Out Disc
  • IP 65
    • SPECIFICATION
  • Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
  • Process Temperature : Max. 248?F (120?C)
  • Operating Pressure Range : 75% of Scale Value
  • Over Pressure Limit : 125% of Max. Scale Value
  • Case : AISI 304 SS
  • Joints : Alloy brazing/Soldering
  • Socket : Copper Alloy
  • Bourdon : Copper Alloy
  • Movement : Copper Alloy
  • Dial : Aluminum
  • Pointer : Fixed/Micro Zero Adjustable
  • Window : Safety Glass
  • Range : Vacuum to 6,000 psi
  • ACCURACY AS PER ASME B.40.1
  • 2.5″/3″ : 2-1-2 (GRADE A)
  • 4?/6? : 1-1-1 (GRADE 1A)

    • Datasheet
