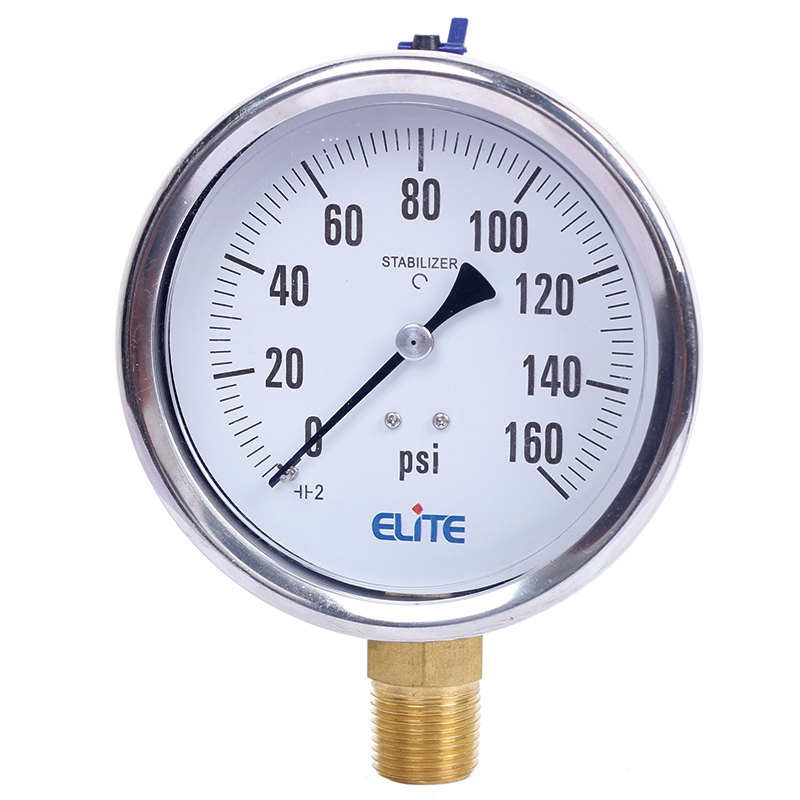

SS Case Brass Pressure Gauges

Description

Standard Followed ASME-B 40.1 / EN837-1

Cost Effective

Build in Stabilizer Movement

Dry or Liquid Version

Ready For Oxygen Service

IP 65

Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)

Process Temperature : Max. 248?F (120?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 125% of Max. Scale Value

Case : AISI 304 SS

Joints : Alloy brazing/Soldering

Socket : Copper Alloy

Bourdon : Copper Alloy

Movement : Copper Alloy

Dial : Aluminum

Pointer : Fixed

Window : PC lens

Range : Vacuum to 6000 psi

ACCURACY AS PER ASME B.40.1

1.5?/2? :3-2-3 (GRADE B )

2.5?/3?/4? : 2-1-2 (GRADE A )
