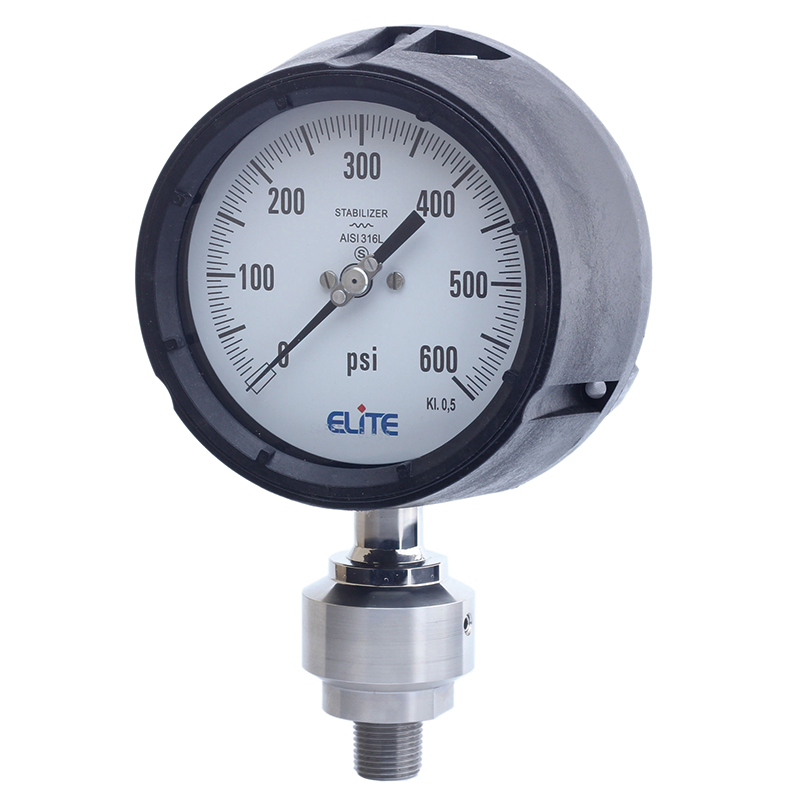

Phenolic Case Gauges With Diaphragm Seal

Phenolic Case Gauges With Diaphragm Seal

SKU: P-33 Category:

Description

SPECIAL FEATURES
  • Phenolic Case With Solid Front Design
  • Blow Out Back
  • With Diaphragm Seal
  • Standard Followed ASME ?B.40.1
  • Helium Leak Tested
  • Built In Stabilizer Movement
  • Ready For Oxygen Use
  • Internal Vacuum /Over Pressure Stop
  • IP:66
    • SPECIFICATION
  • Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
  • Process Temperature : Max. 392?F (200?C)
  • Operating Pressure Range : 75% of Scale Value
  • Over Pressure Limit : 150% of Max. Scale Value
  • Case : Phenolic
  • Joints : Tig Argon Arc Welding
  • Socket: AISI 316L SS
  • Diaphragm: AISI 316L SS
  • Movement : AISI 304 SS
  • Dial :Aluminum
  • Pointer : Micro Zero Adjustable
  • Window : Safety Glass
  • Range : Vacuum to 6,000 psi
  • ACCURACY AS PER ASME B.40.1
  • 4.5? : 0.5-0.5-0.5 (GRADE 2A )

    • Datasheet
