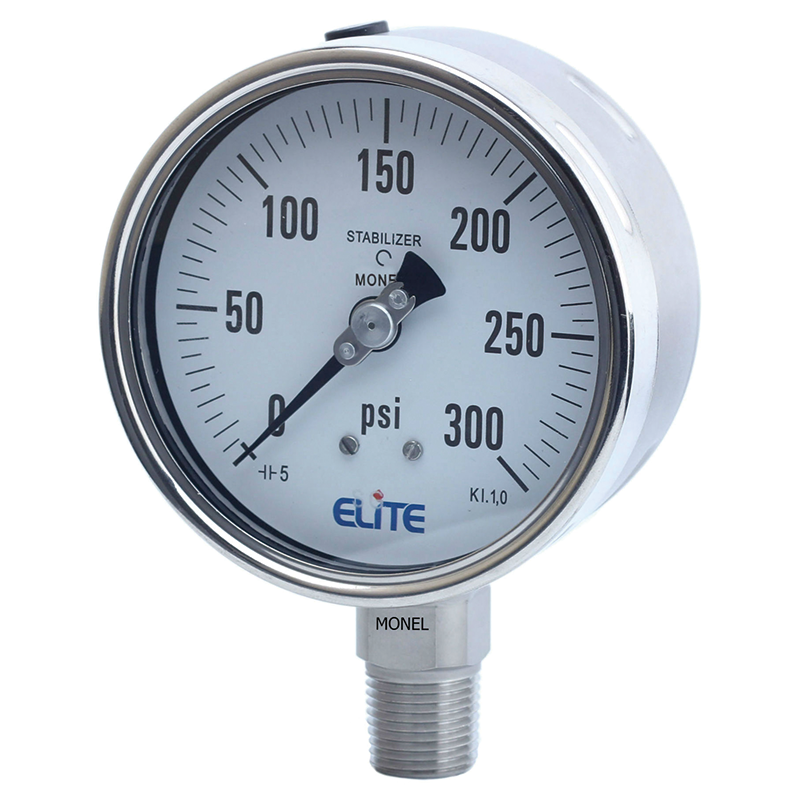

Description
SPECIAL FEATURES
- Standard Followed ASME-B 40.1 / EN837-1
- Wetted Parts MONEL
- Build in Stabilizer Movement
- Dry or Liquid Version
- NACE MR 0175 Compliance
- Helium Leak Tested
- 40mm Temperature Compensated Blow Out Disc
- Internal Vacuum/ Over Pressure Stops
- IP 66
SPECIFICATION
- Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
- Process T emperature : Max. 392?F (200?C)
- Operating Pressure Range : 75% of Scale Value
- Over Pressure Limit : 125% of Max. Scale Value
- Case : AISI 304 SS
- Joints : Tig Argon Arc Welding
- Socket : MONEL
- Bourdon: MONEL
- Movement : AISI 304 SS
- Dial :Aluminum
- Pointer : Micro Zero Adjustable
- Window : Safety Glass
- Range : Vacuum to 10,000psi
- ACCURACY AS PER ASME B.40.1
- 2.5″/3″ : 2-1-2 (GRADE A)
- 4?/4.5?/6?/8?/10? : 1-1-1 (GRADE 1A)
