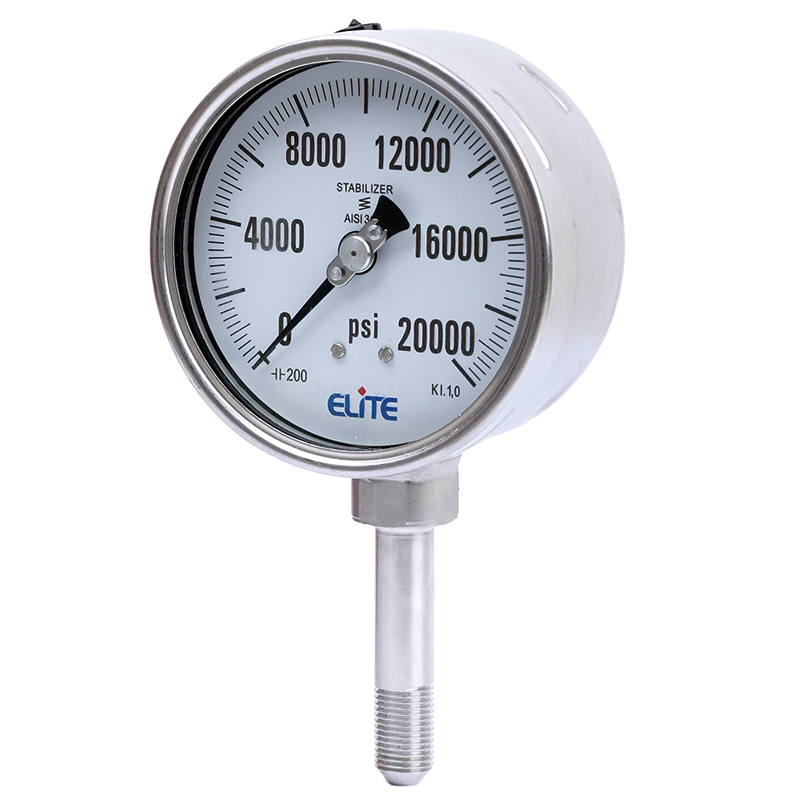

Description
SPECIAL FEATURES
- Standard Followed ASME-B 40.1 / EN837-1
- Wetted Parts AISI 316L Stainless Steel
- Build in Stabilizer Movement
- Dry or Liquid Version
- NACE MR 0175 Compliance
- Helium Leak Tested
- 40mmTemperature Compensated Blow Out Disc
- Internal Vacuum/ Over Pressure Stops
- High Range from 15,000 psi
- IP 66
SPECIFICATION
- Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
- Process Temperature : Max. 392?F (200?C)
- Operating Pressure Range : 75% of Scale Value
- Over Pressure Limit : 125% of Max. Scale Value
- Case : AISI 304 SS
- Joints : Tig Argon Arc Welding
- Socket : AISI 316L SS
- Bourdon : AISI 316L SS
- Movement : AISI 304 SS
- Dial :Aluminum
- Pointer : Micro Zero Adjustable
- Window : Safety Glass
- Range : 15,000 to 60,000 PSI
- ACCURACY AS PER ASME B.40.1
- 2.5?/3″ : 2-1-2 (GRADE A )
- 4?/6?/8?/10? : 1-1-1 (GRADE 1A
