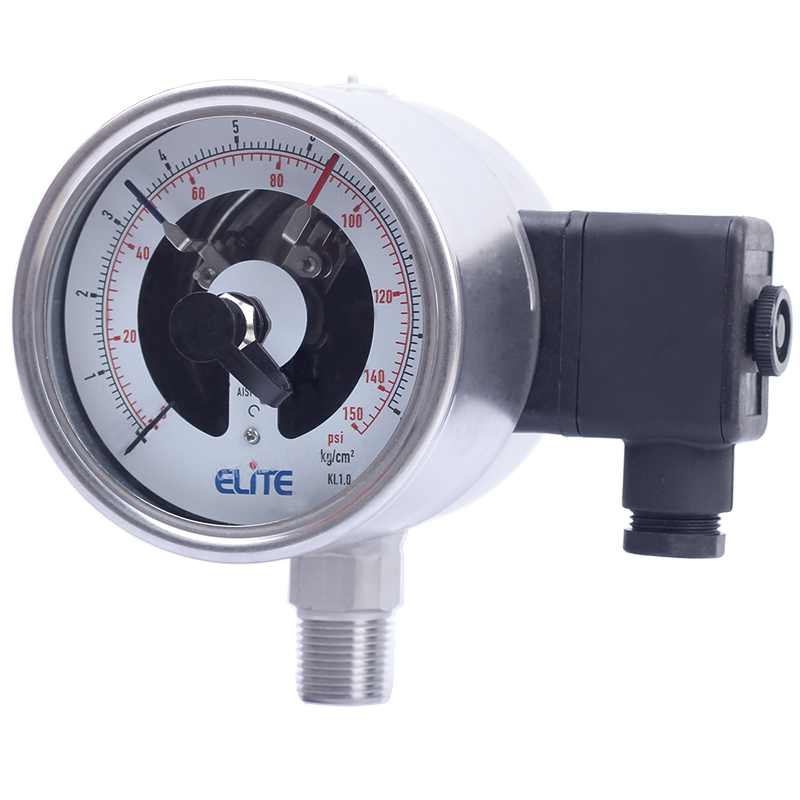

All SS Electric Contact Pressure Gauges
Description
SPECIAL FEATURES
Wetted Parts AISI 316L Stainless Steel
Dry or Liquid Version
NACE MR 0175 Compliance
Helium Leak Tested
Internal Vacuum/ Over Pressure Stops
IP:65
SPECIFICATION
Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
Process Temperature : Max. 392?F (200?C)
Operating Pressure Range : 75% of Scale Value
Over Pressure Limit : 125% of Max. Scale Value
Case : AISI 3 04 SS
Joints : Tig Argon Arc Welding
Socket : AISI 316L SS
Bourdon: AISI 316L SS
Movement : AISI 304 SS
Dial :Aluminum
Pointer : Fixed
Contact: Silver-Nickel
Window : Safety Glass
Range : Vacuum to 10,000PSI
ACCURACY AS PER ASME B.40.1
4?/6? : 1-1-1 (GRADE 1A)
