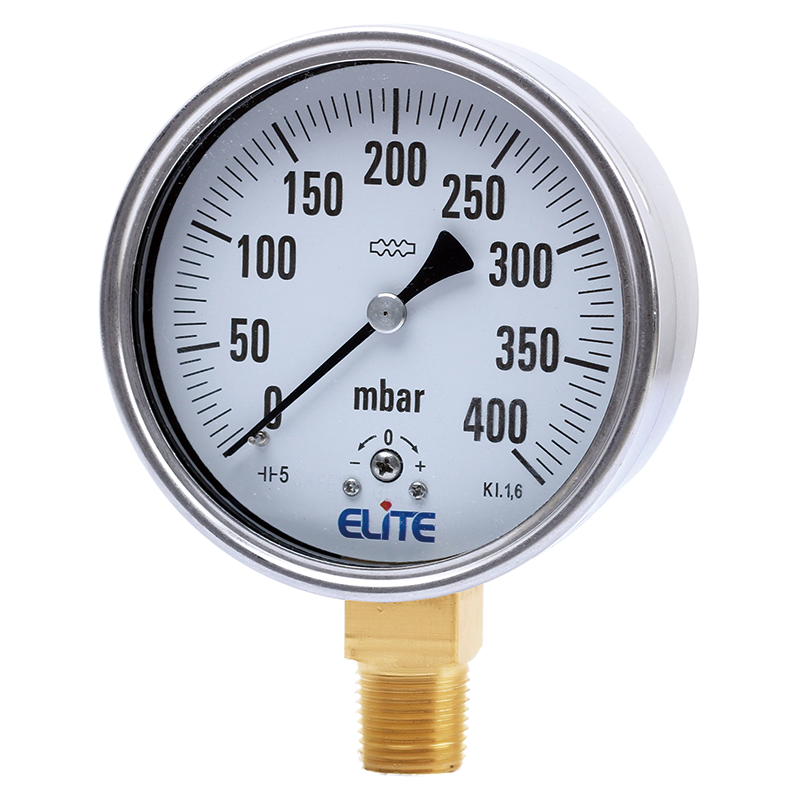

SS Case Brass Pressure Gauges
Description
SPECIAL FEATURES
Standard Followed ASME-B 40.1 / EN837-3
Compact Design
External Zero Adjustable
Ready For Oxygen Service
IP 65
SPECIFICATION
Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
Process Temperature : Max. 212?F (100?C)
Operating Pressure Range : 75% of Scale Value
Over Pressure Limit : Not Suitable
Case : AISI 304 SS
Joints : Alloy brazing/Soldering
Socket : Copper Alloy
Capsule : Copper Alloy
Movement : Copper Alloy
Dial : Aluminum
Pointer : Fixed
Window : Sheet Glass
Range : -250″WC – 0 to 0-250″WC
ACCURACY AS PER ASME B.40.1
2.5″/4?/6?: 2-1-2 (GRADE A )
