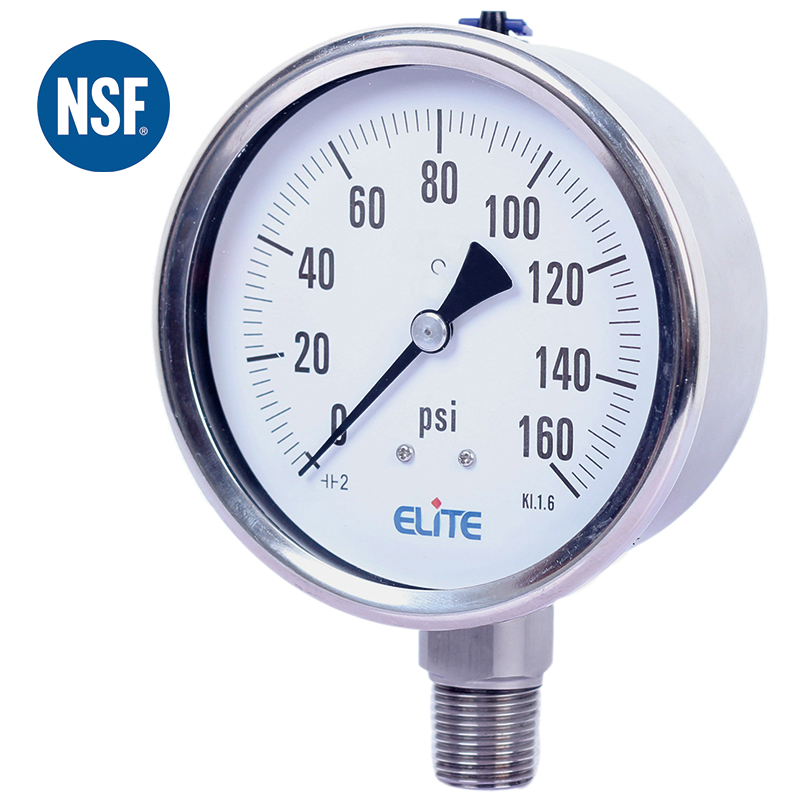

Description
SPECIAL FEATURES
Stainless Steel Case Welded To Socket
Dry or Liquid Filled Version
Standard Followed :
NSF/ANSI 61 Section 8-2016
NSF/ANSI 372-2016
Helium Leak Tested
Ready For Oxygen Use
NSF Certificate for drinking water application
IP:66
SPECIFICATION
Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)
Process Temperature : Max. 392?F (200?C)
Operating Pressure Range : 75% of Scale Value
Over Pressure Limit : 125% of Max. Scale Value
Case : AISI 304 SS Crimped Type
Joints : Tig Argon Arc Welding
Socket: AISI 304 SS
Bourdon: AISI 316L SS
Movement : Brass
Dial : Aluminum
Pointer : Fixed
Window : PC lens
Range : Vacuum to 10,000 psi
ACCURACY AS PER ASME B.40.1
1.5″/2″ : 3-2-3 (Grade B)
2.5″/3″/4″ : 2-1-2 (Grade A)
