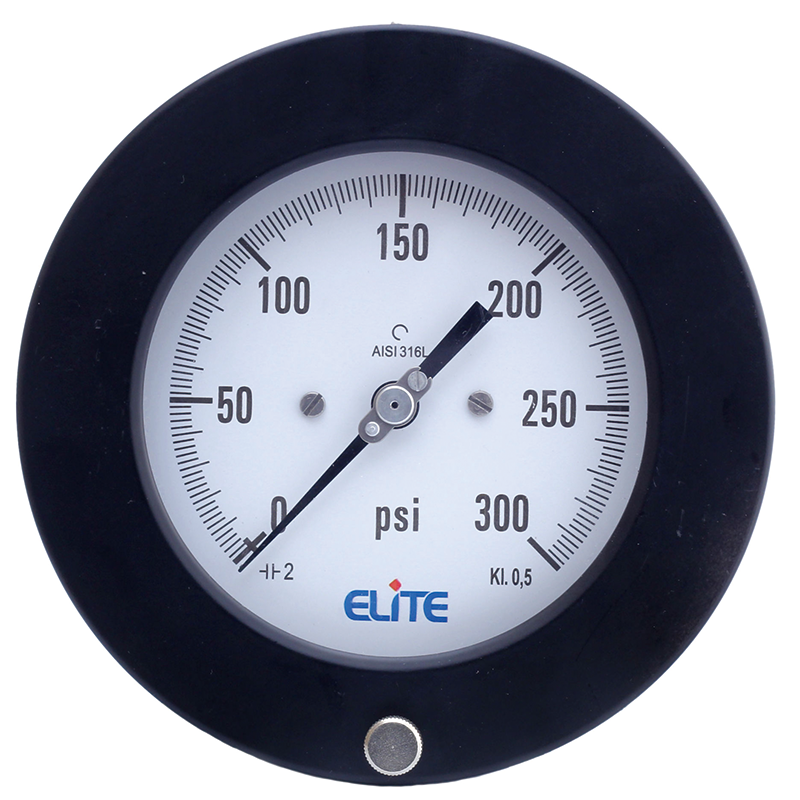

Description
SPECIAL FEATURES
Aluminum solid front case
Blow out back
Standard followed ASME-B.40.1
SS 316L Socket & Bourdon
Helium Leak Tested
Built in Stabilizer Movement
Ready For Oxygen Use
Internal Vacuum /Over Pressure Stop
IP 55
SPECIFICATION
Ambient Temperature: -4?(-20?)To 150?(+65?)
Process Temperature: Max.392?(200?)
Operating Pressure Range: 75% of scale value
Over Pressure Limit: 125% of Max.scale value
Case: Aluminum
Joints: Tig Argon Arc Welding
Socket: AISI 316L
Bourdon: AISI 316L
Movement: AISI 304
Dial: Aluminum
Pointer: Micro Zero Adjustable
Window: PC lens
Ranges: Vacuum to 10,000psi
ACCURACY AS PER ASME B.40.1
4.5″/6″/8.5″ : 0.5 (Grade 2A)
8.5″ : 1-1-1 (Grade 1A
