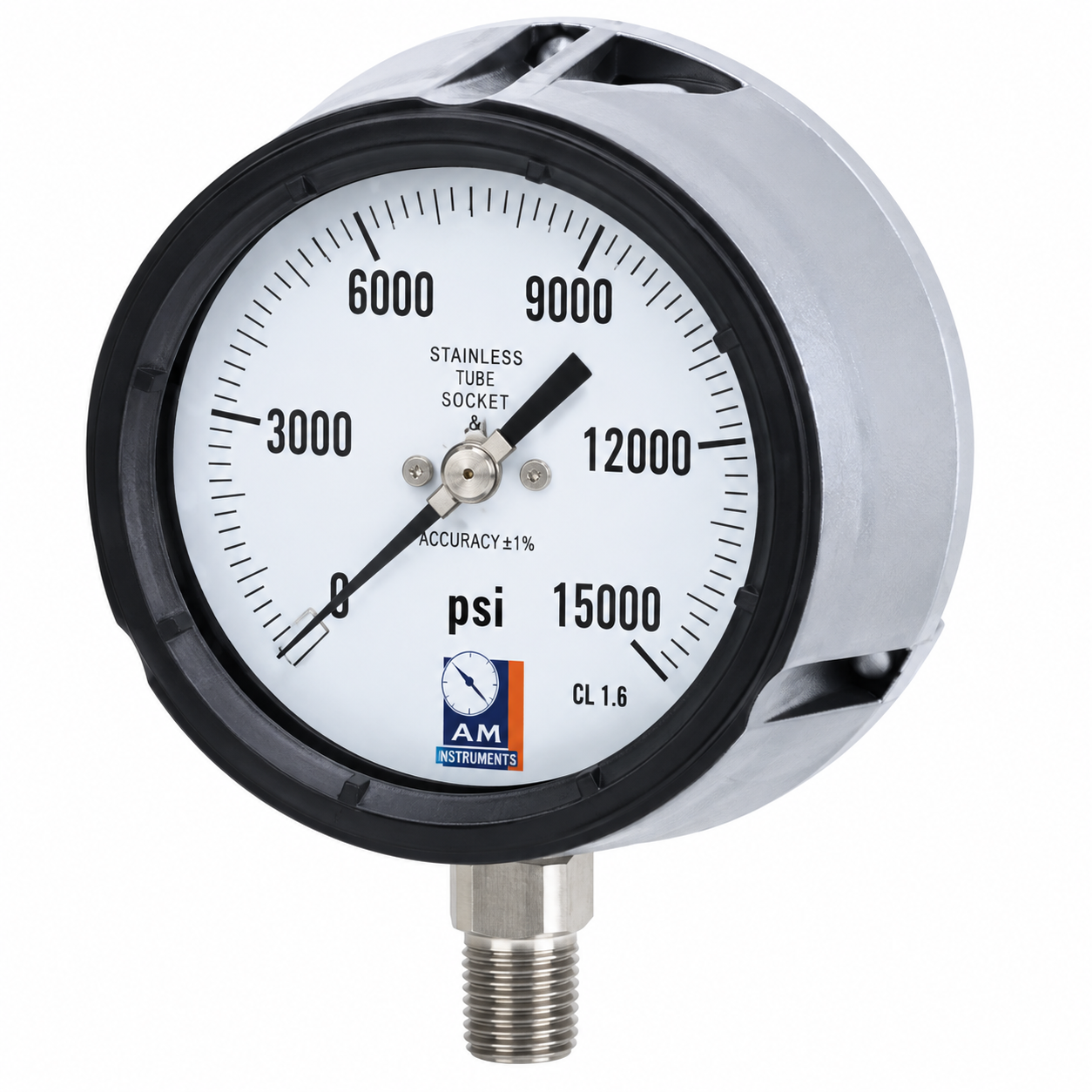

Description
SPECIAL FEATURES
- Phenolic Case With Solid Front Design
- Blow out back
- Standard followed ASME-B.40.1
- Helium Leak Tested
- Built in Stabilizer Movement
- Ready For Oxygen Use
- Internal Vacuum /Over Pressure Stops
- IP 66
SPECIFICATION
- Ambient Temperature: -4 °F (-20°C) to +150°F (+65°C)
- Process Temperature: Max.392℉(200℃)
- Operating Pressure Range: 75% of scale value
- Over Pressure Limit: 150% of Max.scale value
- Case & Bezel: Phenolic
- Joints: Tig Argon Arc Welding
- Protection: IP 66
- Socket: AISI 316L
- Bourdon: AISI 316L
- Movement: AISI 304
- Dial: Aluminum
- Pointer: Micro Zero Adjustable
- Window: Safety Glass
- Gasket: Viton
- Ranges: Vacuum to 40,000psi
