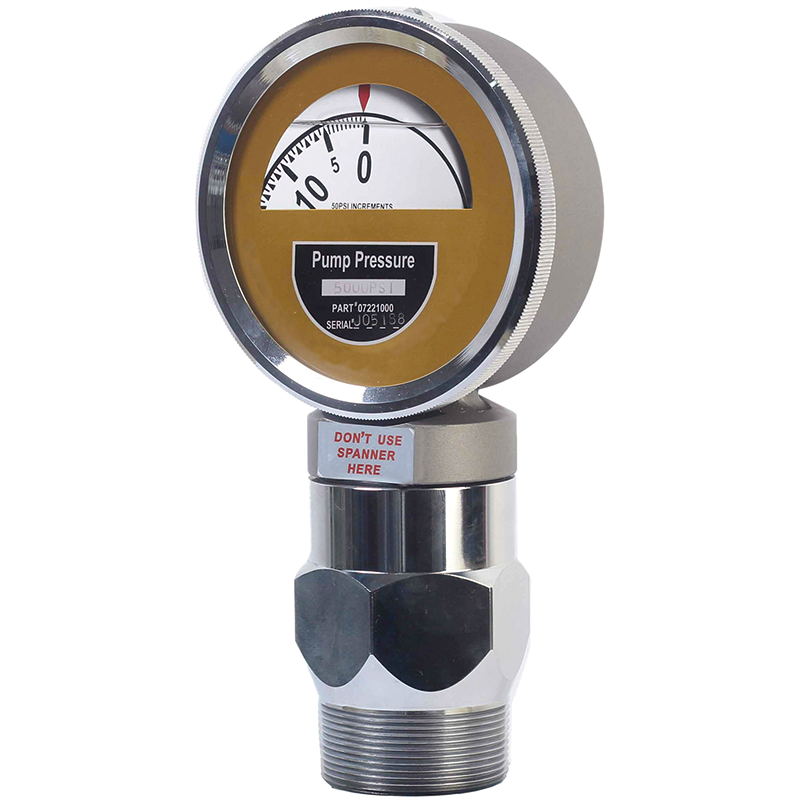

Description
SPECIAL FEATURES
Provide accurate Pressure Reading
and Built In Dampening
Liquid Filed Gauge Minimized Vibration
And Wear To Gauge Movement
Quick And Accurate Response To Pressure Changes
The Stationery Dial And Moving Pointer Is Easy Seen
SPECIFICATION
Ambient Temperature : -77?F (-25?C) to + 131?F (+55?C)
Operating Pressure Range : 75% of Scale V alue
Fork: Stainless Steel
Movement : Brass
Dial :Aluminum
Pointer : Fixed
Window : Perspex
Case filling: Glycerine Filled
Case & ring: Gun Metal Casting ,Weather Proof Gray Hammertone Finish
Mounting & Entry: Direct With Bottom
Sensing Element: AISI 316L SS Diaphragm
Chamber Material: Stainless Steel
Sealing Fluid: Silicon Oil
Mud Protection: Neoprene Rubber Pad
Process Connection: 2″NPT(M)
Process Conn. Material: Mild Steel,Anti-Corrosion Treated
Accuracy: 3-2-3 (Grade B)
2-1-2 (Grade A)
