Description
SPECIAL FEATURES
Resist to High Temperature & Excessive Vibration System
Robust Construction
Corrosion Wear & Tear Proof
Silicon Oil Filled
Accurate & Reliable
SPECIFICATION
Accuracy : 1 as per EN 13190
Ambient Temperature: -72?F (-40?C) to 180?F (100?C)
Process T emperature: Max 117?F ( 65?C)
Stem Diameter: 12mm
Case & Bezel: Die Cast Aluminium
Stem Connection : AISI 316 SS
Joint: Tig Argon Arc Welding
Protection: IP 65
Dampening Liquid: Silicon Oil
Dial: Aluminium
Pointer: Aluminium
Window: Tempered Glass
Gasket & Filling Plug: VITON
APPLICATIONS

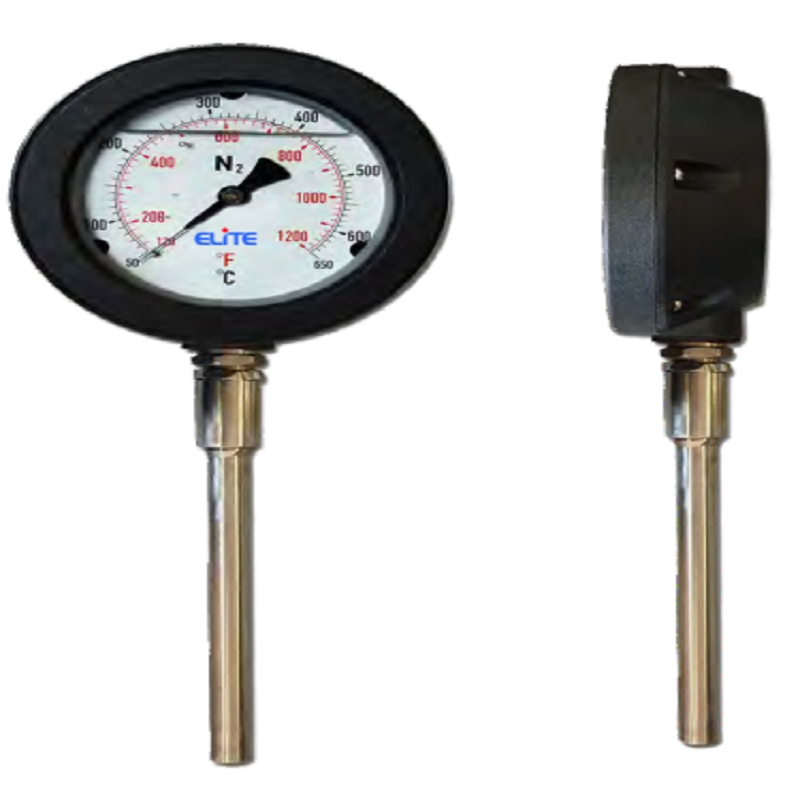

This Nitrogen Filled Thermometer is the most
widely specified Instrument for measuring
Exhaust gas temperature in Diesel Engines.
The Nitrogen Filled System is both reliable &
accurate as well as environment friendly.
The Instrument are protected against vibration
using Silicon to ensure maximum life under the
most severe conditions.
The Instrument field applications are Refinery ,
Diesel, Power Generation, Sets ,Power, Pulp
& Paper , Shipping , Offshore, DG Sets , Oil Engines
& Allied Process Industries
